La nuova Apollo Ring Saw

Dotata di lame intercambiabili

Sulla linea delle nostre Revolution XT, Taurus 3, e altre, la Nuova Apollo Ring Saw rappresena tre taglierine in una.

Apollo:

Può tagliare mattonelle fino a 40 cm in diagonale.
Taglia materiali spessi fino a 7 cm con precisione.
Forza di taglio dieci volte superiore rispetto a una taglierina tradizionale.

Il cambio della lama si effettua facilmente con l'introduzione delle nostre rivoluzionarie cartucce intercambiabili.

La cartuccia ad nello metallico ospita saldamente una lama circolare standard Taurus 3 con la massima esposizione, che consente di operare più velocemente e più facilmente che mai.

L'Apollo Ring Saw incorpora molte nuove funzionalità, molte delle quali provengono dall'ascolto delle esigenze dei nostri clienti voi.

Lame per l'Apollo Ring Saw

wire ring blade sintered cartridge

Le Cartucce con le lame sono vendute sepratamente.

Caratteristiche dell'Apollo Ring Saw

Potenza: 1/3 HP
Voltaggio: 110 or 220V
Peso: 15 Kg
Dimensioni: (H x W x D) 28 x 50 x 52 cm.
Includes Carrello magnetico con squadre
Lame a cartuccia: (vendute separatamente)
- Cartuccia con lama ad anello sinterizzato
- Cartuccia ad anello solido
- Cartuccia ad anello metallico

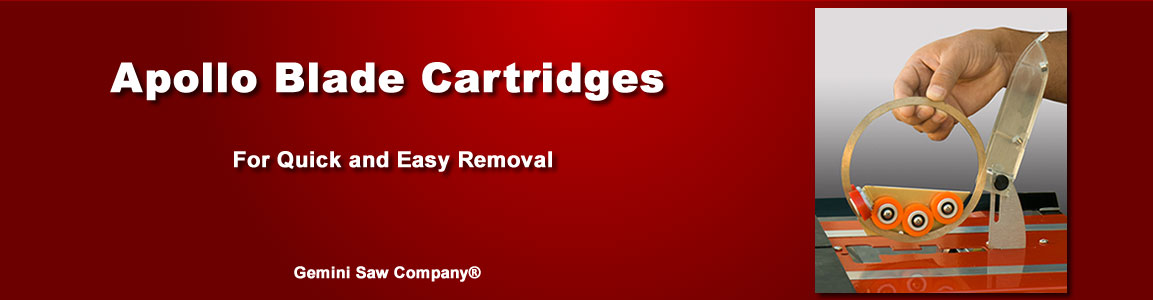

Apollo Ring Blade Cartridges

Quick and Easy Blade Removal and Installation

For Precision Cutting and Gentle Curves

Sintered Blade Cartridge

Two different blades available for this cartridge:

1) Double Sided Standard Blade for stone, marble, granite, and thick glass (only).
This blade is only good for Thick glass and other thick materials. (For thin glass, see #2 below.)

2) Double Sided Fine Blade for glass, stained glass, fused glass, glass tile and any type of glass.

Both the Standard and the Fine Blade feature a double-sided Sintered Diamond Blade.

For Aggressive Straight Cuts in all Materials

6 inch Rigid Ring Blade Cartridge

Two Different Blades are available for use with this Cartridge:

1) 6" Standard Rigid Blade for stone, marble, granite, and thick glass (only).
This blade is only good for Thick glass. 80 grit. sintered diamond blade.

2) 6" Rigid Fine Blade for glass, stained glass, fused glass, glass tile and any glass.
150 grit. Sintered diamond blade.

Features a Single-Sided, Sintered Diamond Blade,
Perfect for Aggressive Straight Cuts.

Electroplated for Extreme Detail and Omnidirectional Cutting

Wired Blade Cartridge

This Cartridge uses the following Taurus 3 Blades:
1. Standard Blade
2. Slim Blade
3. Dichroic Blade

The Taurus 3 Blades will only work with the Apollo Ring Saw if used in this Wired Blade Cartridge.

Ideal for cutting glass, ceramic tile, and dichroic glass.
Also, Great for Cutting Inticate Curves.

Apollo Ring Saw Accessories

New! Polishing Station

An Attachment that turns the Apollo Ring Saw into a Polishing Station. View the Brochure

Now you can grind and polish — at a fraction of the cost of using dedicated machines!

The new Grinding/Polishing cartridge for the Apollo Ring Saw expands the capabilities of the saw, allowing the user to bevel, grind, and polish glass, stone, jewelry, and more.

The quick-change Grinding/Polishing cartridge sets-up easily on the Apollo Ring Saw. The grinding and polishing disc rotates vertically, allowing the user to easily obtain precise 90-degree edges.

The cartridge sports an independent, gravity-fed water system for cooling and lubrication; the water is dispersed through the center of the discs for clean, optimum performance.

A variety of Diamond Grinding Discs and Polishing Pads are included.

The package includes:

• One each 100- and 260-grit grinding discs

• Two 325-grit grinding pads (as the first 335-grit pad wears down, it can then be used as a 500-grit pad for even better results)

• One felt polishing pad

• One container of Cerium Oxide polishing compound

polishing station for the apollo ring saw

The Polishing Station Comes with the following:

Splash Cover
Water feeding system
Complete polishing cartridge
Two Brown pads
One 100 grit pad,
One 260 grit pad
1 polishing pad
1/2 lb. of cirium.

using the polishing station

Apollo Wear Parts

orange grommet

Part # 1062
Orange Grommet Assembly

hole plug

Part # 0711
Hole Plug

green grommet

Part # 1120
Green Grommet

clear grommet

Part # 1072
Clear Grommet Assembly

Download the Apollo Ring Saw Instruction Manual

Apollo Instruction Manual
